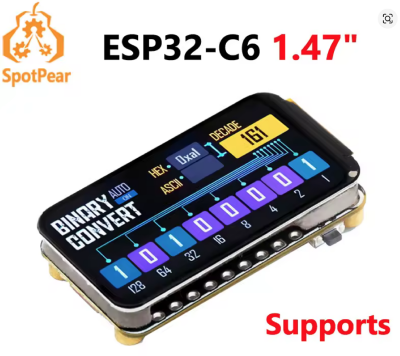

Waveshare ESP32-C6 1.47inch
Jump to navigation
Jump to search
W5500 Ethernet pajungimas[keisti]
| W5500 Pin | ESP32-C6 Pin Label | GPIO | Notes |
|---|---|---|---|
| MOSI | GP3 (left side) | GPIO3 | SPI Master Out |
| MISO | GP2 (left side) | GPIO2 | SPI Master In |
| SCK | GP4 (left side) | GPIO4 | SPI Clock |
| CS | GP9 (right side, bottom) | GPIO9 | SPI Chip Select (user-defined) |
| GND | GND (any black pin) | - | Ground |
| VCC | 5V | - | Power (5V recommended) |
